Check Valves

Check valves are automatic valves that open with forward fl--ow and close with reverse flow.

Product Description:

Main parameter of the Globe valve

ANSI Check valves
Class 150LB-2500LB SIZE 1/2"~48"
DN15-DN1000, PN16~PN250
DN15-DN1000 10K~40K
DN15 -DN1000, PN16~PN250
Design & Manufacture STD

BS1868,API6D,ASME B16.34,DIN3840/EN14341,ISO14313,API594, API602/ISO15761/BS5352,BS5160,JIS B2074,JISB 2084, JIS B2071

Face to Face STD
ASME B16.10,API594, EN558-1, DIN3202,BS2080, API 6D, JIS B2002,GOST3706,
End Connection STD
ASME B16.5,ASME B16.11,ASME B1.20.1,ASME B16.25, EN1092-1, DIN2501,DIN2543-2550 ,JISB2212-JISB2214,JIS2220 (Connection type: RF,FF,RTJ,BW,SW,NPT,)
Test Standard
API598,API 6D,JISB2003,ISO5208,BS 6755, DIN3230,EN12266-1
Check Valve Material

Carbon Steel: A216 WCB,WCC, WC1,ASTM A105
Stainless Steel: A351 F8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Duplex Stainless Steel:A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M, A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310 Low temperature steel:A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB),Gunmetal: B148 C95500,C95800,C95400,C83600, C92200,ASTM B62, B61, B150 C63200
Alloy Steel:Monel 400, Monel K500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C, Titanium alloy
DIN Material:GS-C25/1.0619 1.4408, 1.4308, C22.8

Check valve catalogue
Check Valve Catalogue (2.0Mb)
DIN Check Valves Calalogue (1.2Mb)
Type of Check Valves

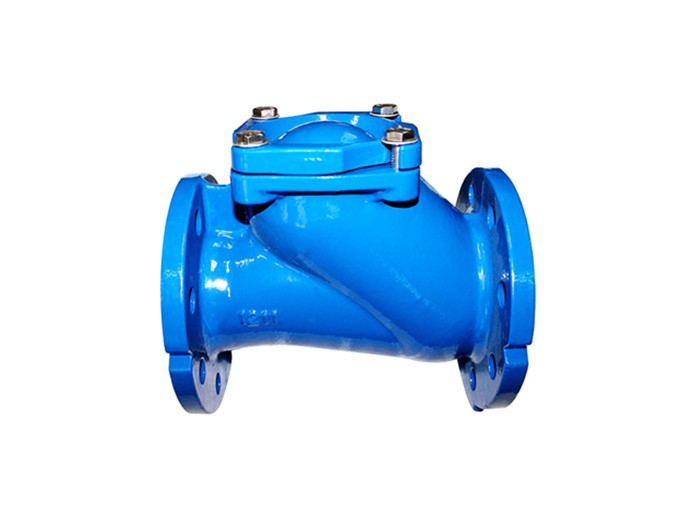

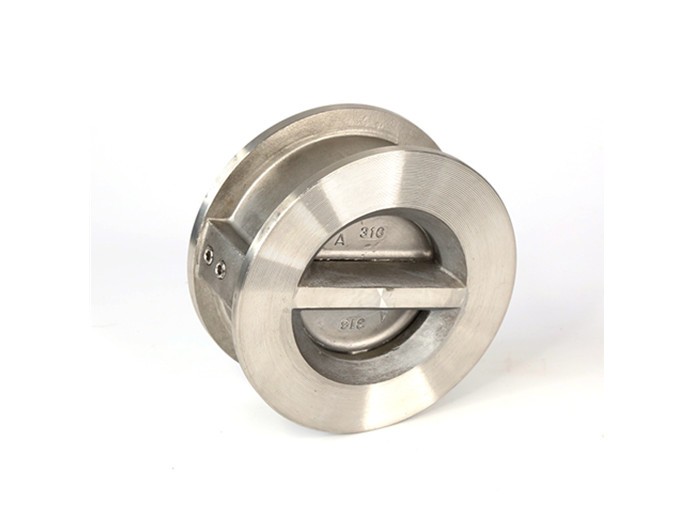

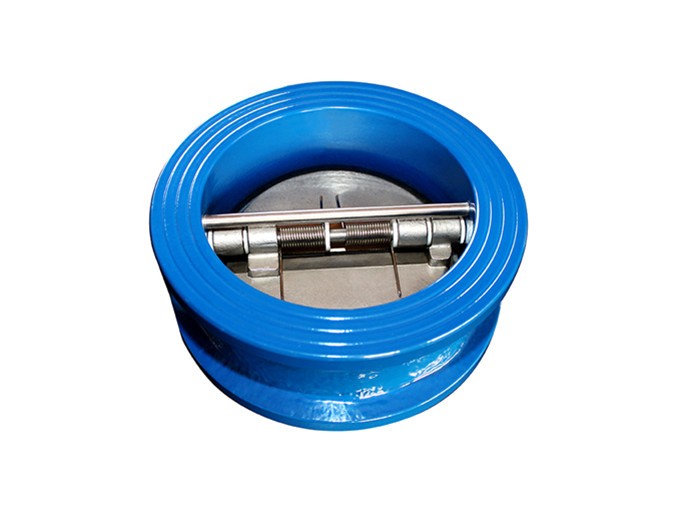

Swing check Valves, Lift Check Valve,Wafer Dual Plate Check Valves,Tilting Disc Check Valve, Counter Weight check valve ,angle check valve ,Piston check Valves, Ball Check Valves , Lug Check valves etc.
