Globe Valves

Advantages..

1.Good shutoff capability
2.Moderate to good throttling capability
3.Shorter stroke

Product Description:

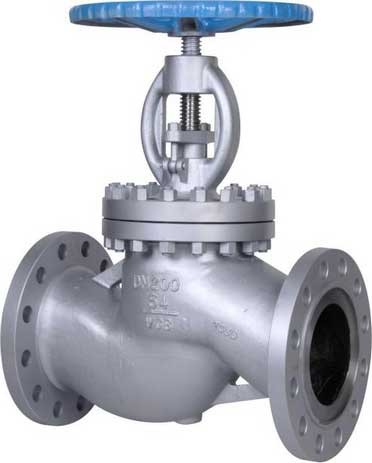

CLASS 150LB~1500LB CAST STEEL GLOBE VALVE

Class 150~1500Lbs, NPS 2~24"

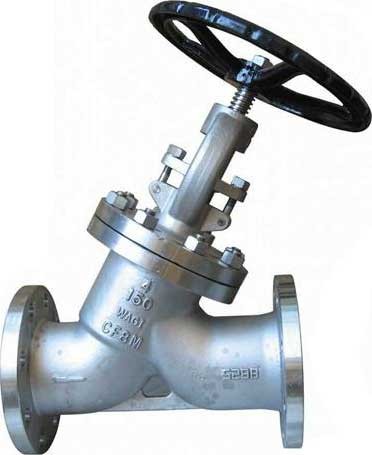

Type: Through way type , Y type Globe globe valve, and Angle Type globe valve
OS&Y, Rising Stem, Plug Type Disc, regulating disc(throttling disc) , Bolted Bonnet, Threaded Seat Ring
Bolted Bonnet, Threaded or welded seat ring, Raised Face flange (RF), RING TYPE JOINT FLANGE(RTJ)
Butt welding ends (BW) ASME B16.25
Outside screw and yoke(OS&Y),Rising stem, Non rising stem ,
Bolt bonnet(BB),Pressure seal bonnet (PSB), extended bonnet for Cryogenic Service, Welded bonnet etc.
Operatored type Hand wheel , Gear Operated, Pneumatic Operated,Electric Operated, Impact Hand wheel etc.
Bare stem with ISO5210 top mounting pad for actuator

Material of GLOBE VALVE :

Carbon Steel: A216 WCB,ASTM A105
Stainless Steel: A351 CF8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, Monel K500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C, Titanium alloy
Duplex Stainless Steel:A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M,
A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310
Low temperature steel:A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB),Gunmetal: B148 C95500,C95800,C95400,B62, C83600, C92200, B61, B150 C63200

GLOBE VALVE Standards compliance:

Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: to ASME B16.5, ASME B16.47 Series A, series B, MSS SP-4
Butt welded end: ANSI B16.25
Test and inspection: API598
Manufacturing to NACE MR-01-75 on request

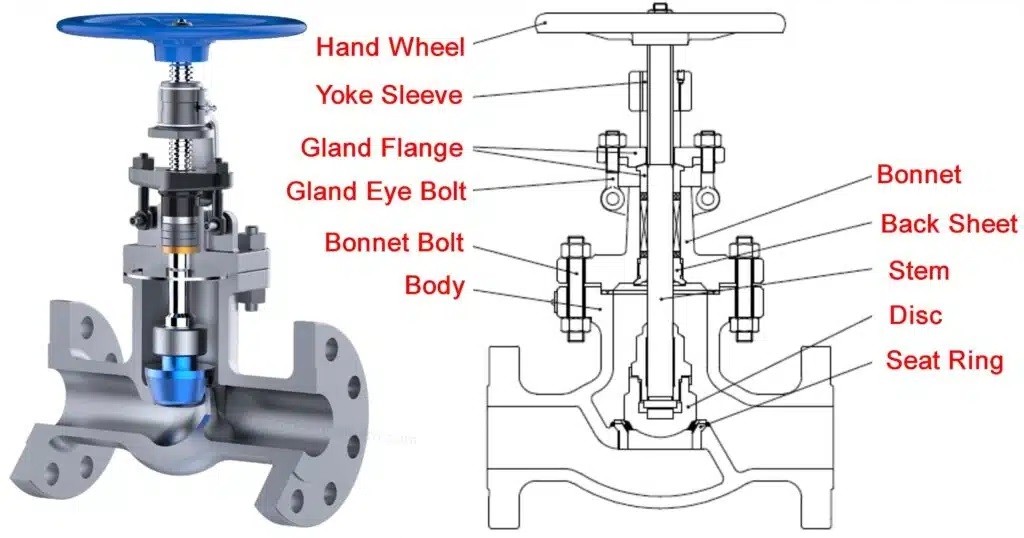

A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
