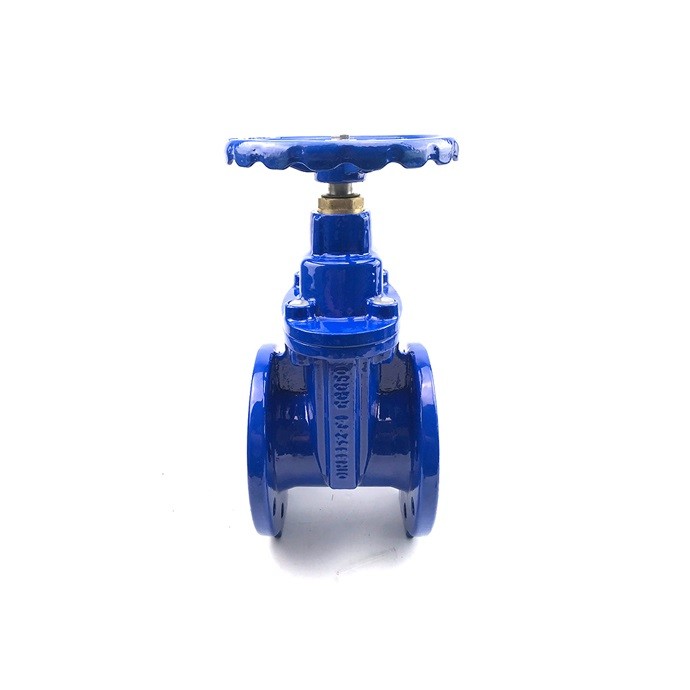

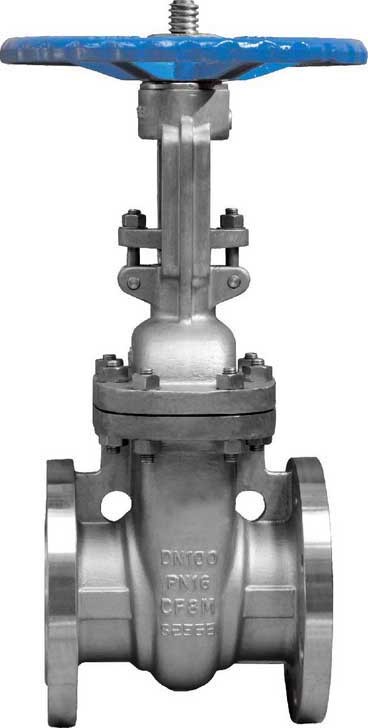

Gate Valves

Advantages..

1.Good shutoff features
2.They can be used in two directions
3.Pressure loss through the valve is minimal

Product Description:

Main parameter of the Gate valves

ANSI Std. Gate valves
Class 150LB-2500LB SIZE 1/2"~60"
DIN Std. Gate valves
DN50~DN1200, PN16~PN420
JIS Std. Gate valves
DN15~DN800 10K~40K
DN15~DN800, PN16~PN420
Design & Manufacture Std.
API600, API 6D,ASME B16.34,API603 BS1414,DIN3352,BS1984 etc.
Face to Face Std.
ASME B16.10, API 6A, ,DIN3202,EN558, BS2080,MSS SP-81, JIS B2002,NFE29-305,ISO5752 etc.
End Connection Std
ASME B16.5,ASME B16.11,ASME B1.20.1,ASME B16.25, EN1092-1, DIN2501,DIN2543-2550 ,JISB2212-JISB2214,JIS2220 (Connection type: RF,FF,RTJ,BW,SW,NPT,)
Test Standard
API598, API 6D,BS 6755, DIN3230,EN12266 ,JIS B2003
Operated Type
Handwheel,Bevel Gear ,Pneumatic,Electric, Bare stem with ISO5210 top mounting pad
Material
Carbon Steel: A216 WCB,WCC, WC1,ASTM A105
Stainless Steel: A351 F8(F304),CF8M(F316),CF3(F304L),CF3M(F316L),CF8C(F347),F321,F321H,CK20
Alloy Steel:Monel 400, Monel K500, alloy20,904L,CN7M, Inconel, Hastelloy® B&C, Titanium alloy
Duplex Stainless Steel:A351 CN7M(B473), CD4MCu(F50),CK3MCuN(F44),CG8M, A890-1A,4A,5A,6A, A182 F44,F50,F51,F53,F310 Low temperature steel:A352 LCB,LCC,LCA,LC3,A350 LF2,LF3
High temperature steel:A217 WC6,WC9,WC5,WC11,C5,C12,C12A,A182 F22,F11 ,F5,F9,
Bronze, Nickel aluminum bronze(NAB),Gunmetal: B148 C95500,C95800,C95400,C83600, C92200,ASTM B62, B61, B150 C63200 ,
DIN Material:GS-C25/1.0619 1.4408, 1.4308, C22.8
Gate valve catalogue
Gate valves catalogue (5.4Mb)
DIN Gate valves Catalogue (1.4Mb)
Special Gate Valves
Except for common gate valves, we also produce cryogenic gate valves, bellow sealed gate valve, Jacketed gate valves, Through Conduit Gate Valve,Parallel Slide Gate Valve,Knife Gate Valve,High-Temperature Gate Valve,high pressure valves etc.
