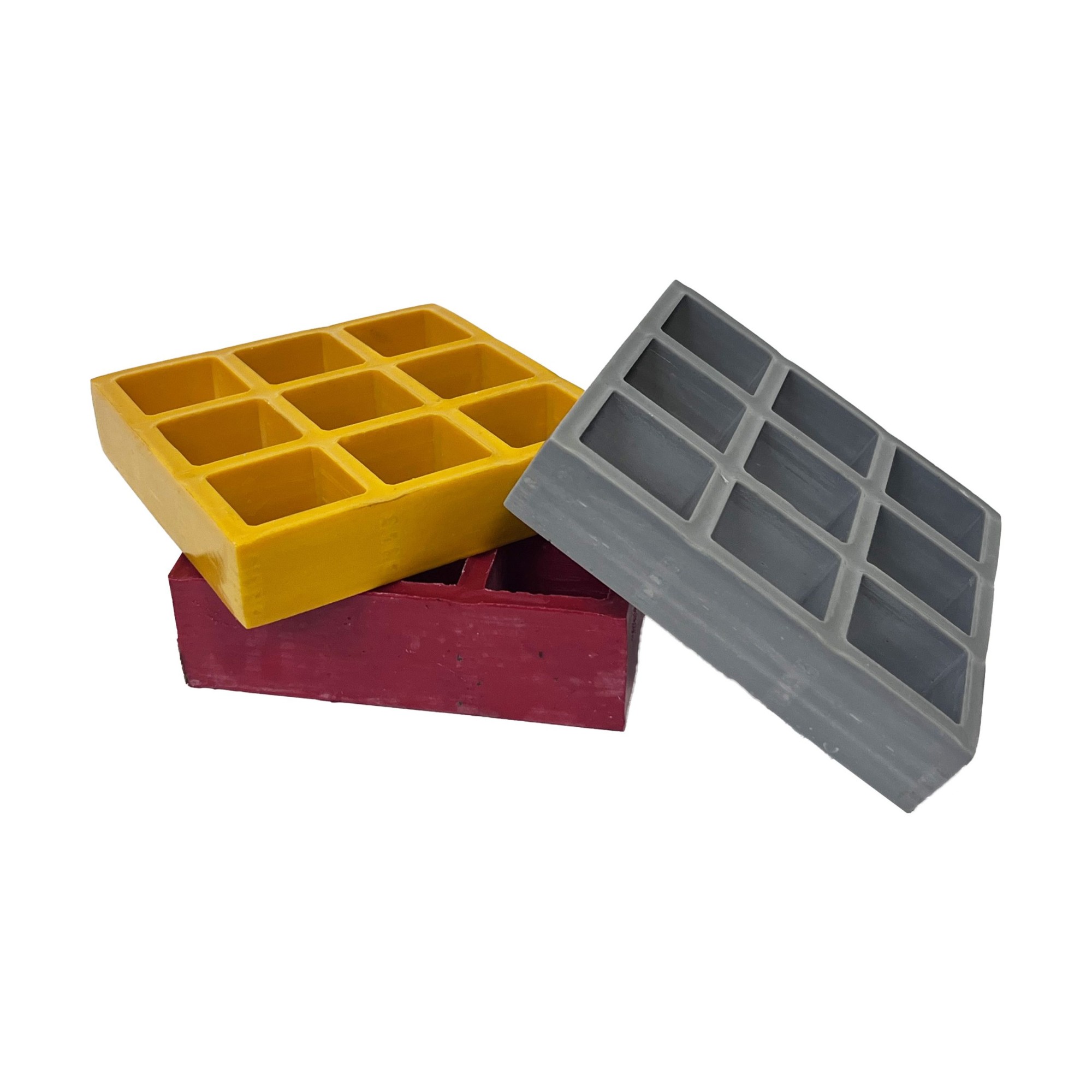

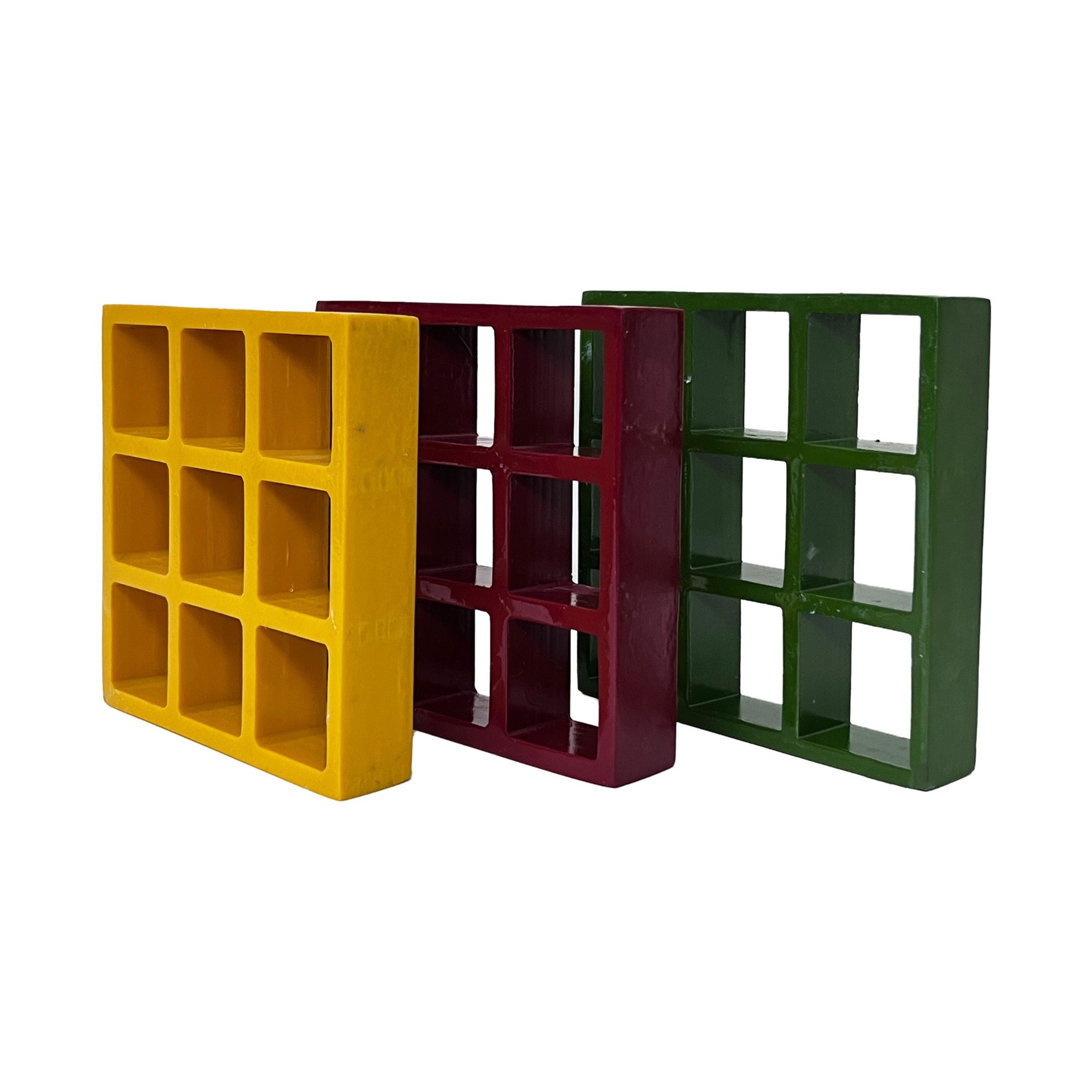

It is a structural plate that uses high-strength glass fiber roving as a reinforcing material and thermosetting resin as a matrix material to composite cast on a special metal mold. It has excellent characteristics such as light weight, high strength, corrosion resistance, flame retardancy, and strong anti-skid.
1. Corrosion resistance
The different performance resins give the grid different corrosion resistance, and can be used for a long time in the corrosive environment of different acids, alkalis, salts, organic solvents, gas and liquid media.
2. Flame retardant
High-quality matrix resin and unique flame retardant formula give products excellent flame retardant properties. FRP grid products have passed the American Society for Testing and Materials (ASTM) flame retardant test. The flame diffusion coefficients of polyester resin, vinyl resin, and phenolic resin grids are less than 15, 10, and 5; the smoke density is less than 500, 300, and 5 respectively.
3. Lightweight and high strength
The perfect combination of continuous continuous alkali-free glass fiber yarn and resin in the large pool kiln gives the grille unique light and high strength characteristics. The specific gravity of the product is only 1/4 of the steel, the specific strength exceeds the steel, and the different sizes are more varied Carrying occasions provide the best design guarantee.
4. Aging resistance
The high-quality matrix resin and anti-aging additives give the grille a long-lasting anti-aging performance. The unique inner grid design makes the grille have a good self-cleaning function, ensuring the grille to have a long-lasting bright gloss and sustained high strength. The service life is 20 More than years.
5. Designability
The composite material's own characteristics give the grid a flexible design performance. In addition to the above characteristics, the product color is based on the six standard colors of yellow, green, blue, gray, orange, and black provided by the company. Provide the required color, the external dimensions of the product can be cut or spliced to any size required by the customer on the basis of the standard size provided by the company, and at the same time, the special requirements for the grille in special occasions can also be achieved through design. Good features.
6. Safe anti-skid
High elastic modulus and different surface effects give the grille a reliable and non-slip performance. The product has a slight elasticity and reduces staff fatigue. Double plane, crescent, sand, diamond-shaped cover, different surface effects provide different occasions. Anti-slip performance.
7. Electrical performance
The alkali-free glass fiber and high-performance resin endow the product with superior electrical properties. The electrical breakdown strength of the product can reach 10KV / mm. The metal tool does not generate electric sparks when it is hit. use.
