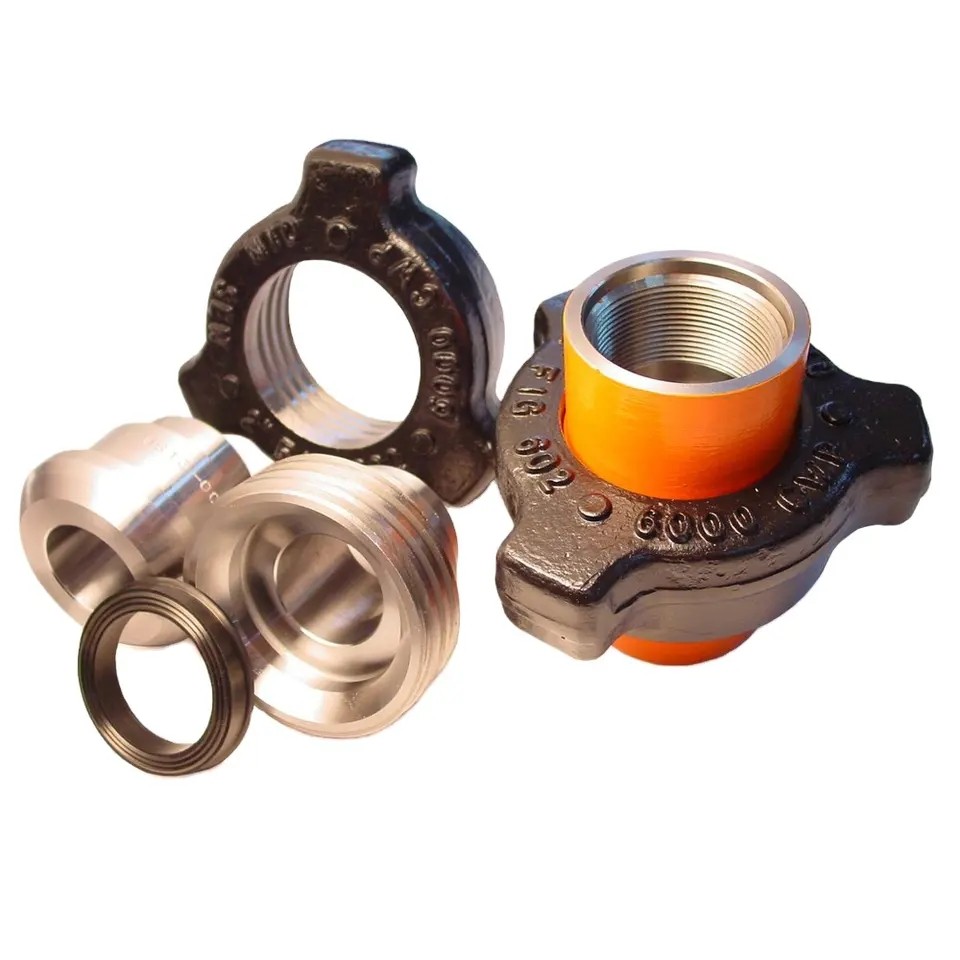

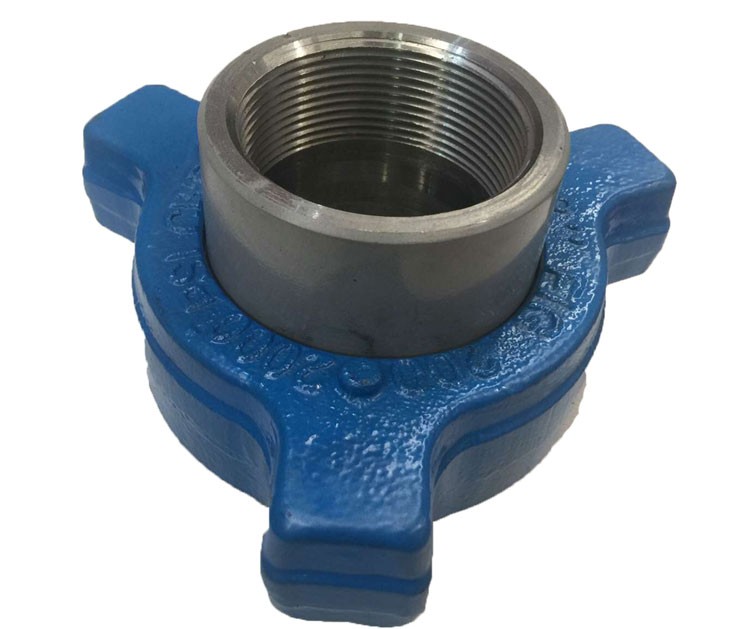

Hammer Unions

Recommended For:
Hammer Unions can be used for cementing trucks, oil field applications, for quick connection on tank trucks and rail cars carrying of LPG, LNG, CNG, etc., all kinds of manifolds and other high pressure equipment and pipes. Hammer Unions have good mechanical performance and sealing property. Especially, they can operate under the bad weather condition. They can be assembled, fixed and changed easily and conveniently. They are very easy to use as they are self-aligning, and do not require any special tools. It takes some seconds as compared to several minutes required with flanged connection. Hence in case of railway wagon loading, where large numbers of connections are to be made in each loading operation.

Certification/Standards:

API Spec 16A--ISO 14693

Main Types:

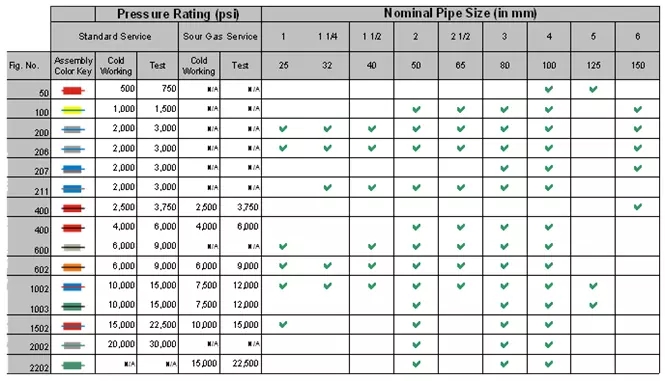

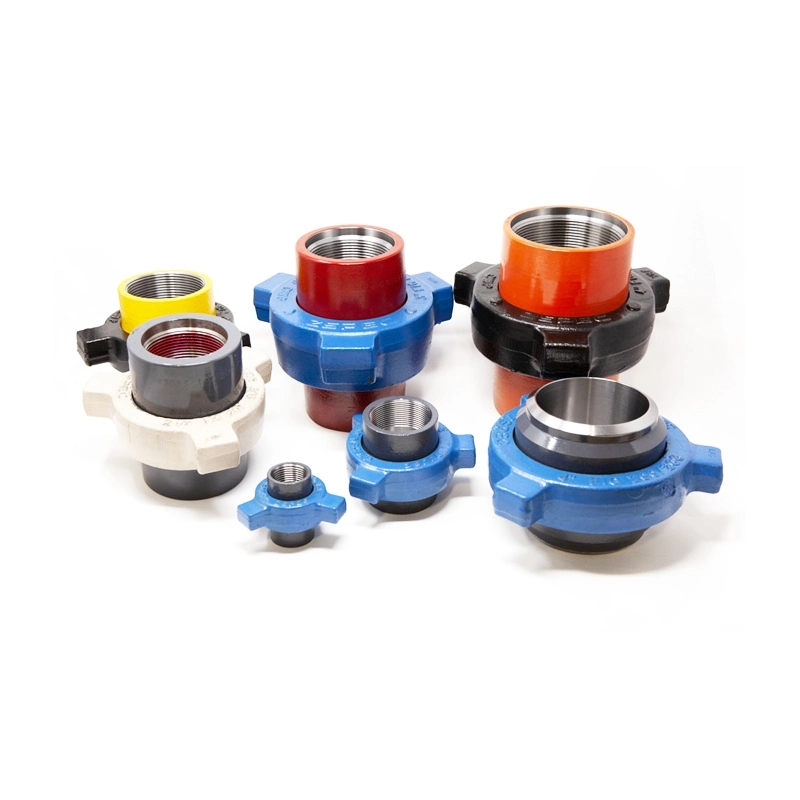

Hammer Union type mainly consists of Figure50, Figure100, Figure200, Figure206, Figure207, Figure400, Figure600, Figure602, Figure1002, Figure1002 and Figure1502.
